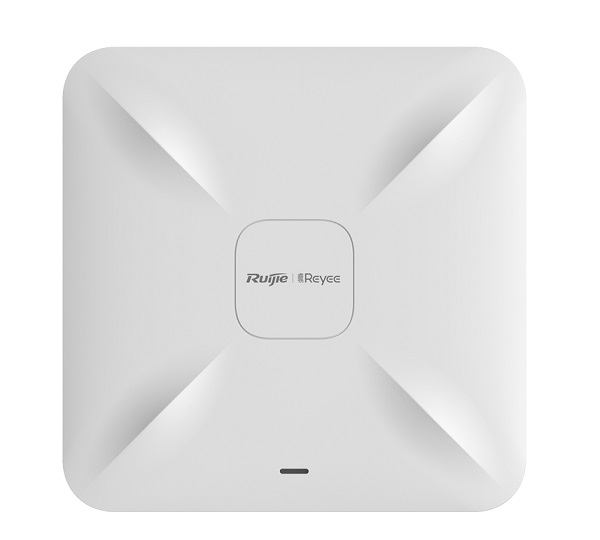

RG-RAP2200(F), WiFi, დაშვების წერტილი

RG-RAP2200(F), WiFi, დაშვების წერტილი

238.00 ლარი

The device supports 2.4GHz and 5GHz dual-band communication, providing access rate of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. It can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience.

SKU / პროდუქტის კოდი: 12979კატეგორია: პროდუქცია ქსელის კომპონენტები WIFI ტეგები და ატრიბუტები: WIFI Ruijie
HiWatch on Facebook Share This on Twitter Share an Image on Pinterest Share This on Google Plus

აღწერა

Model

RG-RAP2200(E)

RG-RAP2200(F)

Hardware specifications

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n :2.4G ~ 2.4835GHz

802.11a/n/ac : 5G:5.150~5.250GHz,5.725~5.850GHz (country specific)

Antenna

Internal antennas(2.4G: 2dBi,5G: 2dBi)

Spatial Streams

2.4G 2x2MIMO  5G 2x2MIMO

Max Throughput

Up to 400Mbps at 2.4G

Up to 867Mbps at 5G

1.267Gbp per AP

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receive Sensitivity

11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)

11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)

11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15

11ac HT20: -83dBm (MCS0), -57dBm (MCS9)

11ac HT40: -79dBm (MCS0), -57dBm (MCS9)

11ac HT80: -76dBm (MCS0), -51dBm (MCS9)

Maximum Transmit Power

5.725~5.850GHz:≤20dBm (EIRP)

5.150~5.250GHz:≤20dBm (EIRP)

2.4~2.4835GHz:≤20dBm (EIRP)

Adjustable Power

1dBm

1dBm

Dimensions

194mm×194mm×35mm (excluding mounting kits)

194mm×194mm×35mm (excluding mounting kits)

Weight

0.45kg (excluding mounting kits)

0.45kg (excluding mounting kits)

Service Ports

2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE

2 10/100Base-T Ethernet ports,

PoE/LAN1 port supports PoE

Management Port

NA

NA

LED Indicator

NA

NA

Power Supply

Single indicator (green light)

Power Consumption

Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)

802.3af/802.3at PoE

Environment

≤ 12.95W

Operating temperature: 0°C~40°C

Storage temperature: -40°C~70°C

Operating humidity: 5%~95%(non-condensing)

Installation

Storage humidity: 5%~95%(non-condensing)

Safety Standard

GB4943, IEC 62368-1

EMC Standard

GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035

Vibration Standard

IEC61373

Radio Standard

EN300 328, EN301 893

MTBF

>250000H

>250000H

Software Features



Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 110

Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz)

Recommended number of clients: 48 (16 at 2.4GHz, 32 at 5GHz)

Up to 8 SSIDs

Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication

Support static blacklist and whitelist

Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform

Platform management features

Automatic RF adjustment via the platform

Unified configuration via the platform

Unified monitoring via the platform

გადმოწერა

გადმოწერა

RG-RAP2200FWIFI__file__12075.pdf
